请叫一个问题

菲凡制版

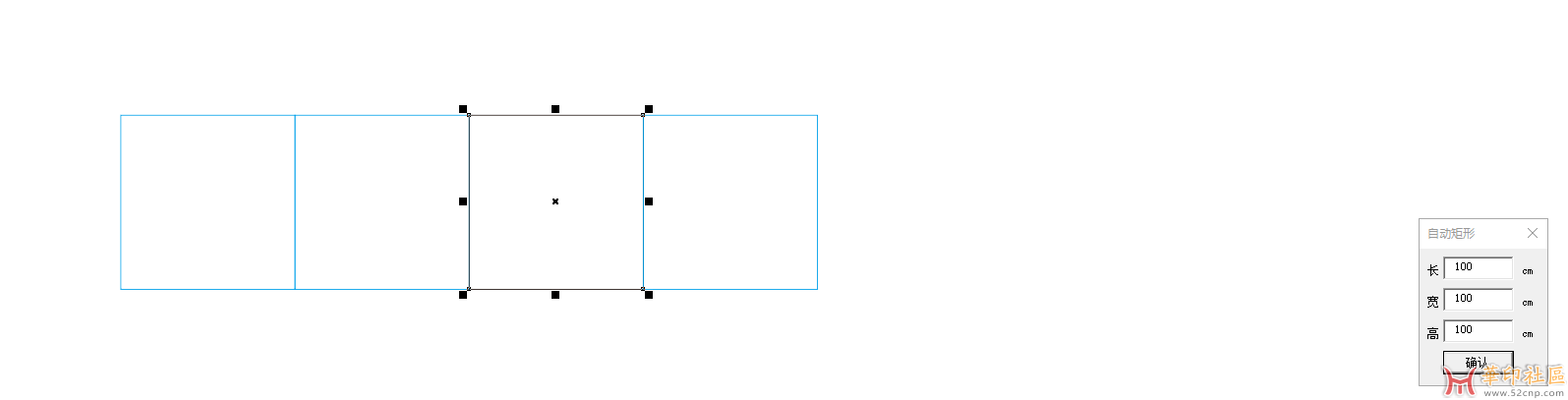

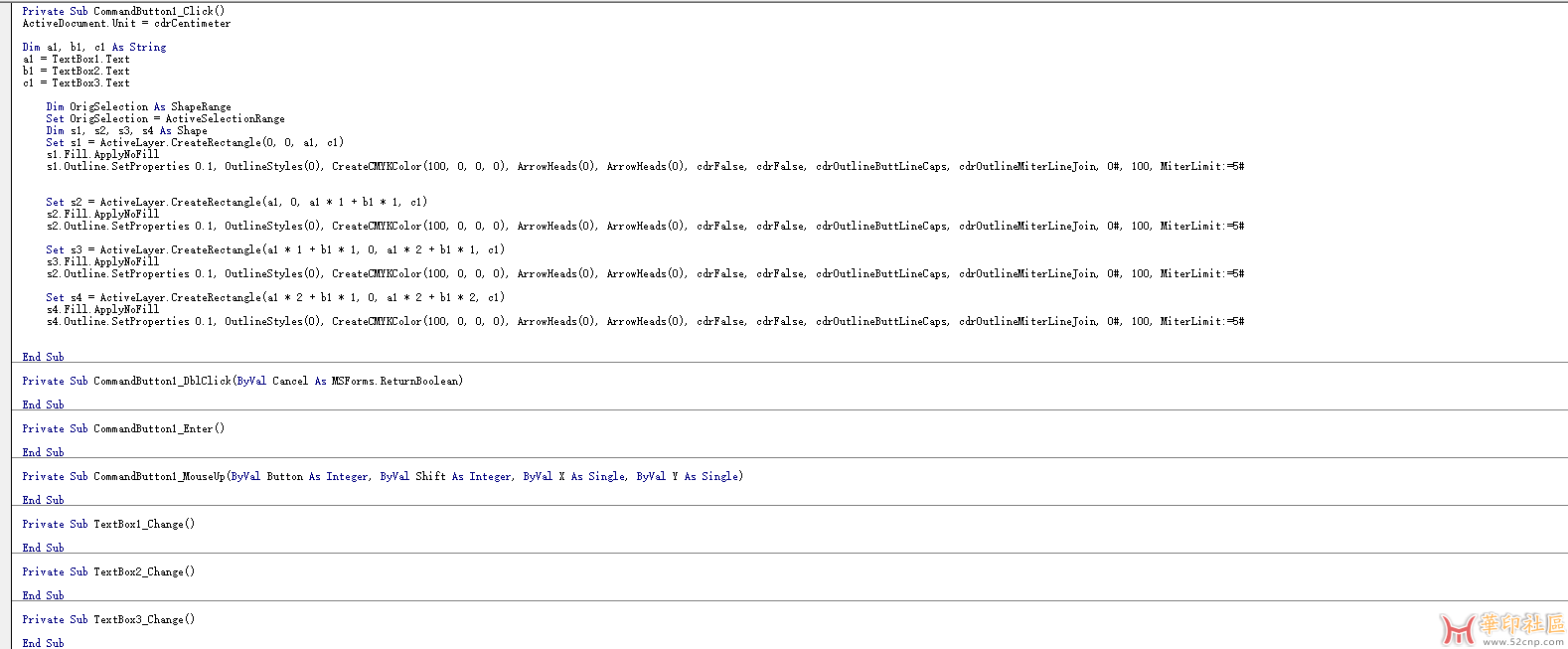

为什么就第3个图形改不了轮廓粗细以及颜色呢？这是哪里出问题了 这是代码：Private Sub CommandButton1_Click()
ActiveDocument.Unit = CDRCentimeter

Dim a1, b1, c1 As String
a1 = TextBox1.Text
b1 = TextBox2.Text
c1 = TextBox3.Text

    Dim OrigSelection As ShapeRange
    Set OrigSelection = ActiveSelectionRange
    Dim s1, s2, s3, s4 As Shape
    Set s1 = ActiveLayer.CreateRectangle(0, 0, a1, c1)
    s1.Fill.ApplyNoFill
    s1.Outline.SetProperties 0.1, OutlineStyles(0), CreateCMYKColor(100, 0, 0, 0), ArrowHeads(0), ArrowHeads(0), cdrFalse, cdrFalse, cdrOutlineButtLineCaps, cdrOutlineMiterLineJoin, 0#, 100, MiterLimit:=5#


    Set s2 = ActiveLayer.CreateRectangle(a1, 0, a1 * 1 + b1 * 1, c1)
    s2.Fill.ApplyNoFill
    s2.Outline.SetProperties 0.1, OutlineStyles(0), CreateCMYKColor(100, 0, 0, 0), ArrowHeads(0), ArrowHeads(0), cdrFalse, cdrFalse, cdrOutlineButtLineCaps, cdrOutlineMiterLineJoin, 0#, 100, MiterLimit:=5#

    Set s3 = ActiveLayer.CreateRectangle(a1 * 1 + b1 * 1, 0, a1 * 2 + b1 * 1, c1)
    s3.Fill.ApplyNoFill
    s2.Outline.SetProperties 0.1, OutlineStyles(0), CreateCMYKColor(100, 0, 0, 0), ArrowHeads(0), ArrowHeads(0), cdrFalse, cdrFalse, cdrOutlineButtLineCaps, cdrOutlineMiterLineJoin, 0#, 100, MiterLimit:=5#

    Set s4 = ActiveLayer.CreateRectangle(a1 * 2 + b1 * 1, 0, a1 * 2 + b1 * 2, c1)
    s4.Fill.ApplyNoFill
    s4.Outline.SetProperties 0.1, OutlineStyles(0), CreateCMYKColor(100, 0, 0, 0), ArrowHeads(0), ArrowHeads(0), cdrFalse, cdrFalse, cdrOutlineButtLineCaps, cdrOutlineMiterLineJoin, 0#, 100, MiterLimit:=5#


End Sub

Private Sub CommandButton1_DblClick(ByVal Cancel As MSForms.ReturnBoolean)

End Sub

Private Sub CommandButton1_Enter()

End Sub

Private Sub CommandButton1_MouseUp(ByVal Button As Integer, ByVal Shift As Integer, ByVal X As Single, ByVal Y As Single)

End Sub

Private Sub TextBox1_Change()

End Sub

Private Sub TextBox2_Change()

End Sub

Private Sub TextBox3_Change()

End Sub

jiangyu

Dim a1, b1, c1 As String
a1 = TextBox1.Text
b1 = TextBox2.Text
c1 = TextBox3.Text

以上最好修改一下，
Dim a1, b1, c1 As Double
a1 = TextBox1.Value
b1 = TextBox2.Value
c1 = TextBox3.Value

String下数据计算容易出错，例如100+100貌似会等于100100而不是等于200
你的代码里面有一些乘1的，应该是这个问题。

zhangpingjun

Set s3 = ActiveLayer.CreateRectangle(a1 * 1 + b1 * 1, 0, a1 * 2 + b1 * 1, c1)
    s3.Fill.ApplyNoFill
    s3.Outline.SetProperties 0.1, OutlineStyles(0), CreateCMYKColor(100, 0, 0, 0), ArrowHeads(0), ArrowHeads(0), cdrFalse, cdrFalse, cdrOutlineButtLineCaps, cdrOutlineMiterLineJoin, 0#, 100, MiterLimit:=5#

你写成S2.OUTLINEle ~~~~~~~~~~~~~~~:)

菲凡制版

zhangpingjun 发表于 2023-8-12 13:08
Set s3 = ActiveLayer.CreateRectangle(a1 * 1 + b1 * 1, 0, a1 * 2 + b1 * 1, c1)
    s3.Fill.ApplyNoFil ...

我来试试，谢谢大佬

菲凡制版

jiangyu 发表于 2023-8-12 14:41
Dim a1, b1, c1 As String
a1 = TextBox1.Text
b1 = TextBox2.Text

已经解决了！谢谢
